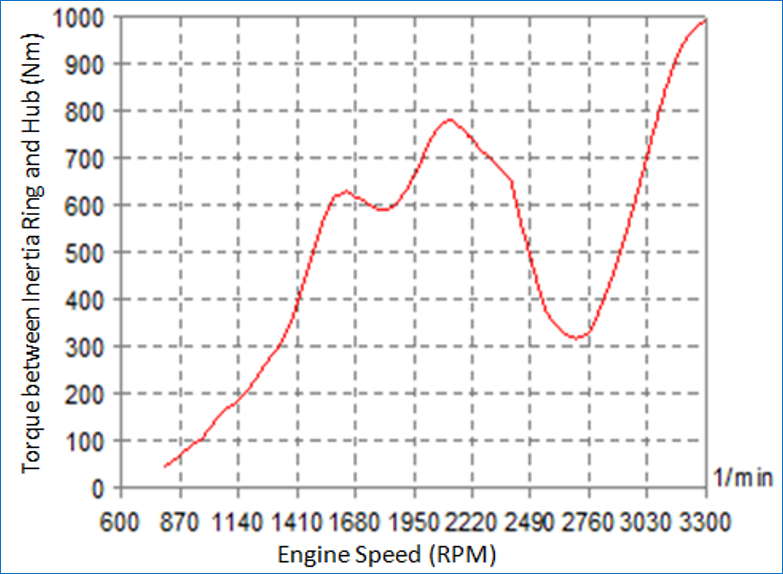

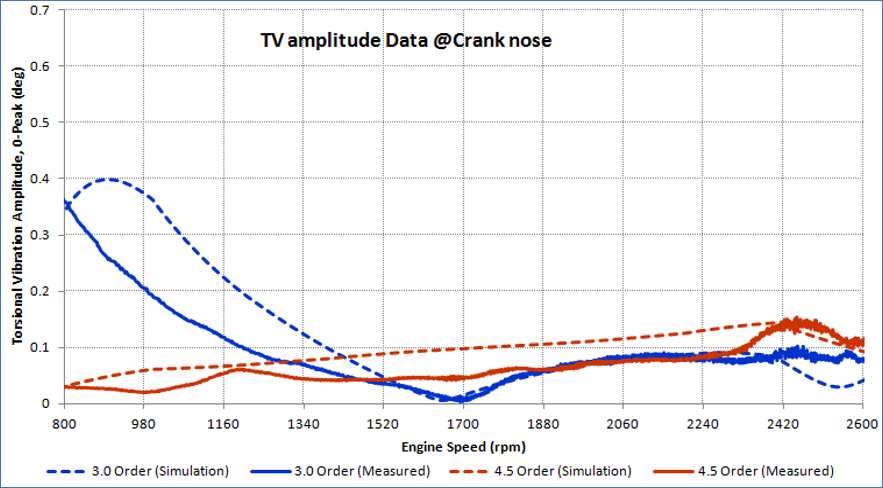

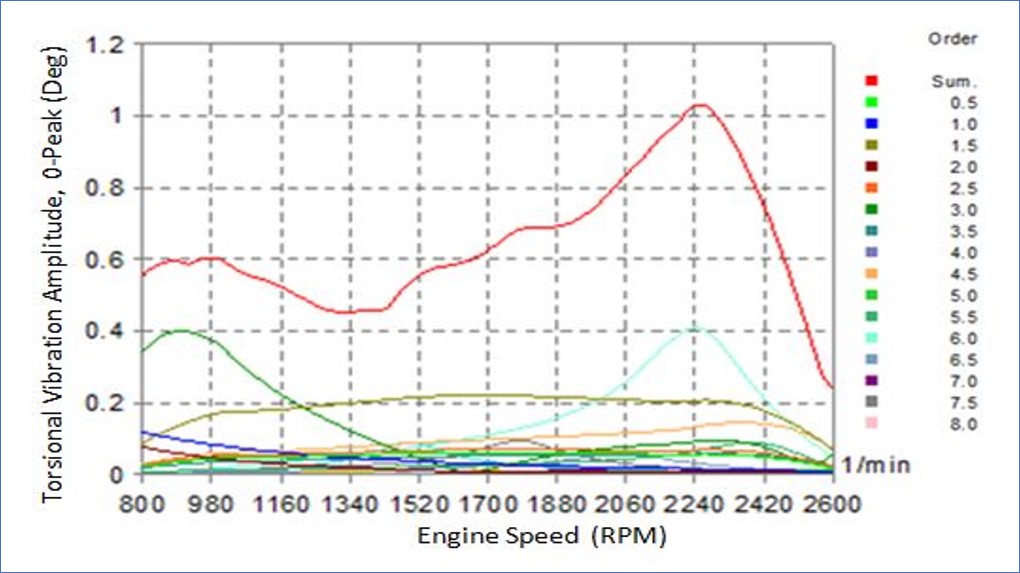

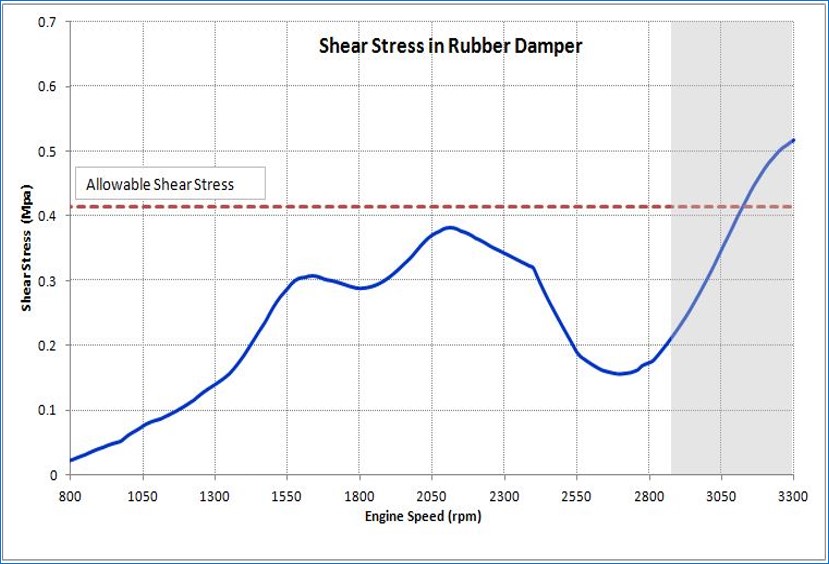

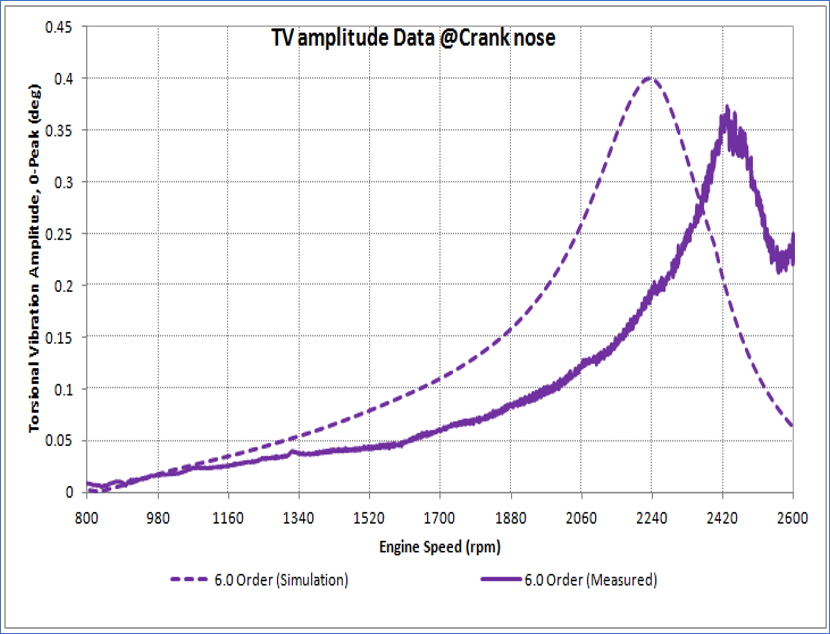

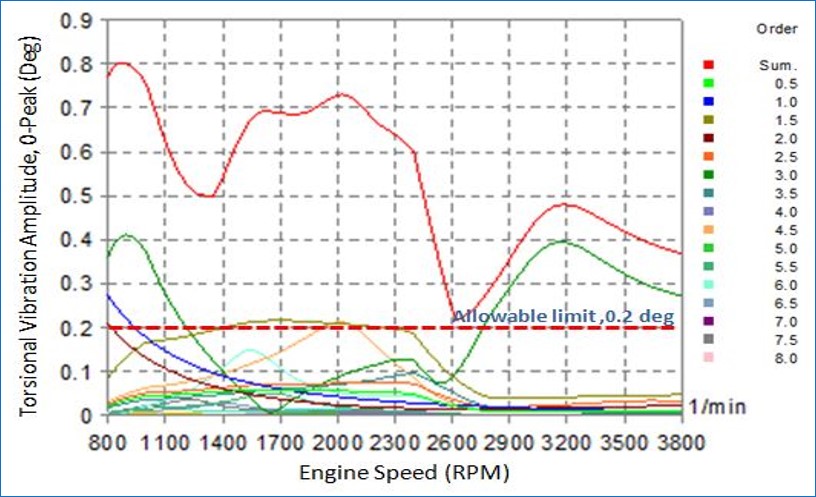

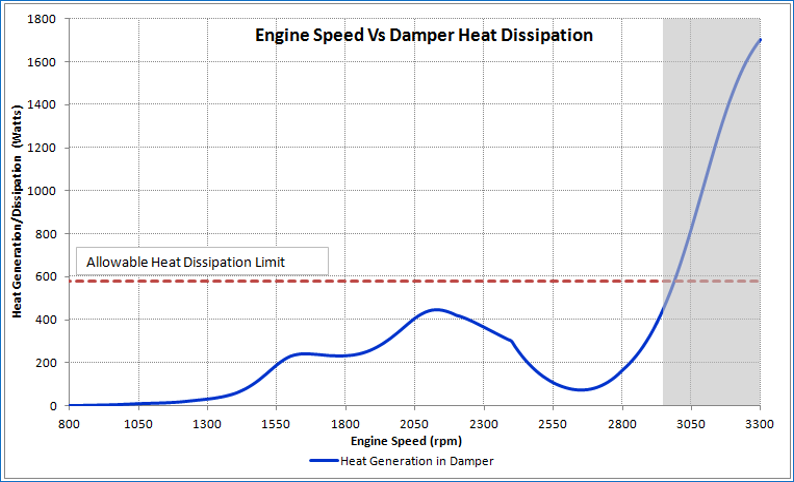

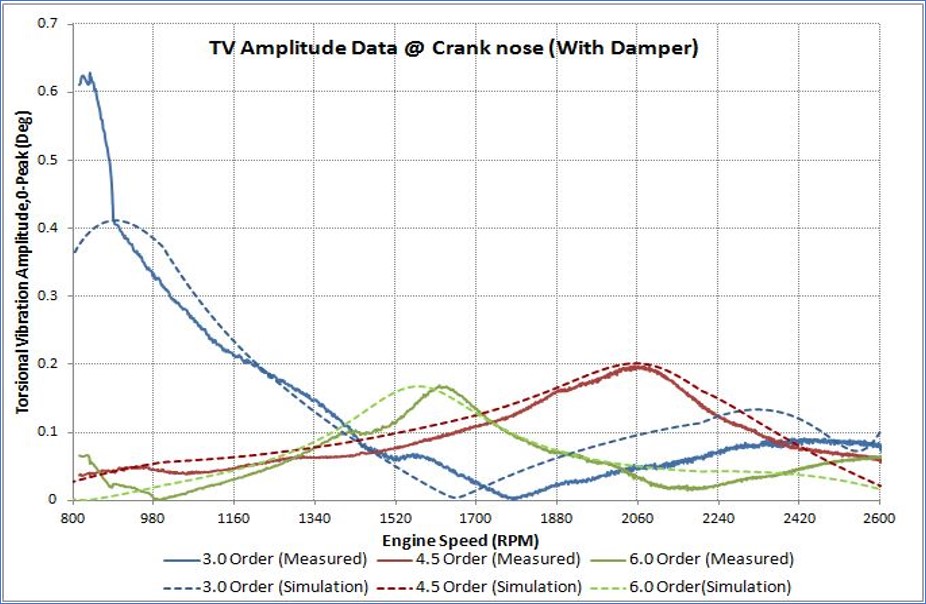

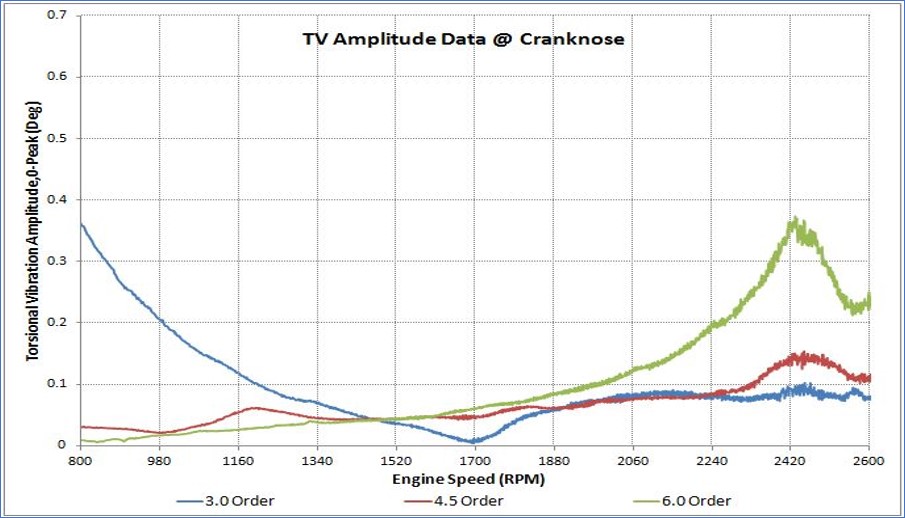

Posted on October 17, 2021 in Model Calibration Model Calibration System Undamped Response Comparison Measured Vs Simulation Comparison Measured Vs Simulation Measurement data @ Test bench level Simulation Data System damped Response Simulation Data System damped Response – Comparison Measured Vs Simulation System damped Response – Measurement data @ Test bench level System Vehicle Response System Vehicle Response -Damper Heat Load System Vehicle Response -Damper Shear Stress Plot System Vehicle Response -Relative Torque between Hub and Ring System Vehicle Response -Simulation Data
